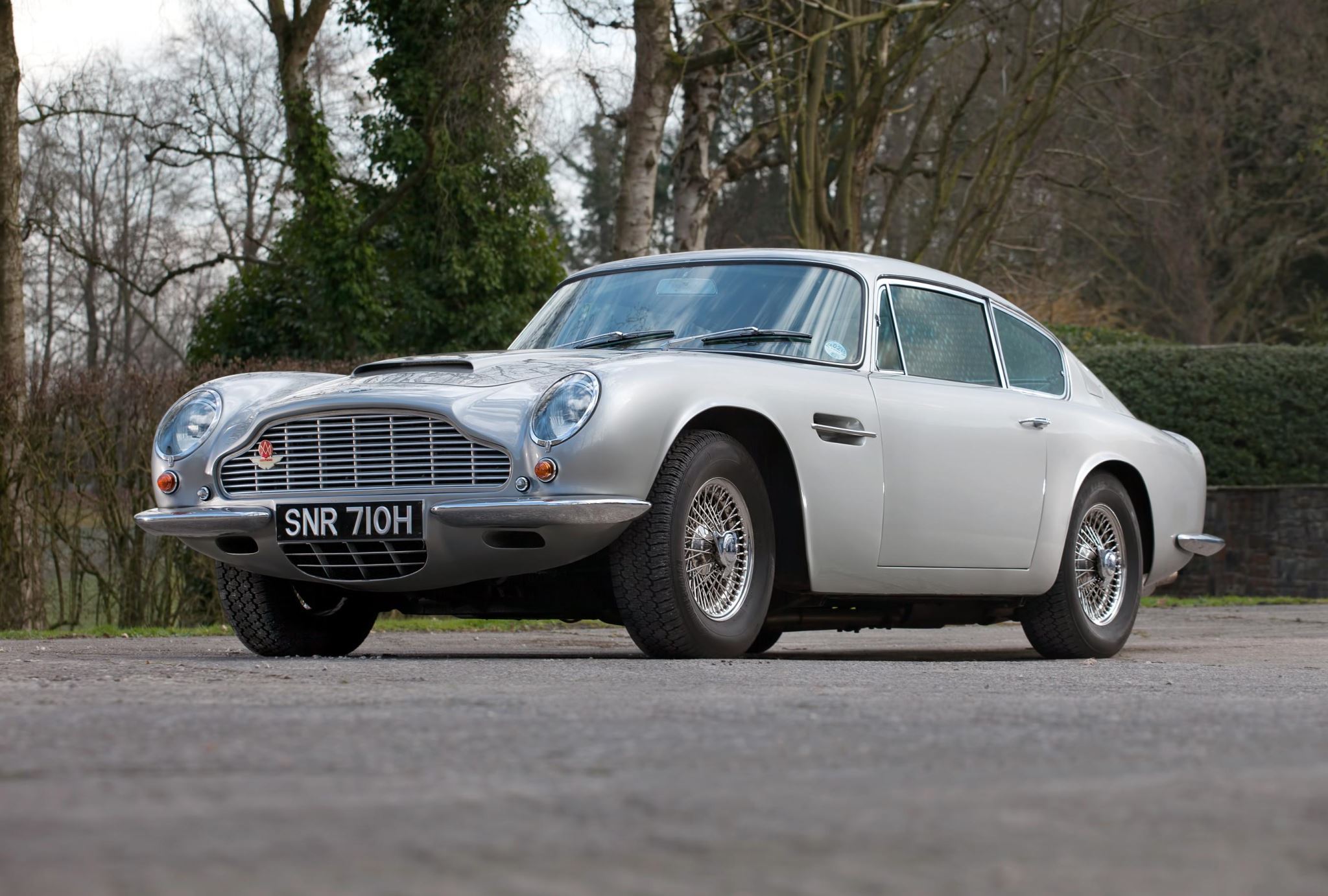

1969 Aston Martin DB6 Vantage MK II

Car Specs

1969 Aston Martin DB6 Vantage MK II

Information

Aston Martin

Quick Facts

Build Start: 1969

Available in other variants

read more »

Specifications

General

Build Start: 1969
Model Variant: DB6

Dimensions

Wheelbase: 2585mm
Track/tread (rear): 1385mm
Width: 1680mm
Ground clearance: 160mm
Kerb weight: 1500kg
Track/tread (front): 1385mm
Length: 4620mm
Height: 1360mm
Fuel Tank Capacity: 86litres

Body Details

Body Type: 2+2 seater fixed-head coupé

Engine Details

Specific output(DIN): 81.3 bhp/litre1.33 bhp/cu in
Specific torque(DIN): 98.35 Nm/litre, 1.19 ft·lb/cu3
Compression Ratio: 9.4:1
Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Top Gear Ratio: 0.83
Engine Type: naturally aspirated petrol
Cylinders: Straight 6
Bore × Stroke: 96 × 92mm
Sump: wet sumped
Crankshaft Bearings: 7
Catalytic converter: N
Engine Layout: longitudinal
Gearbox: 5 speed manual
Final Drive Ratio: 3.73
Engine Manufacturer: Aston Martin
Capacity: 4 litre (3996 cc)
Bore/stroke ratio: 1.04

Performance

Power-to-weight ratio: 219.68 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
maximum torque(DIN): 393 Nm (290 ft·lb) (40.1 kgm)at 4500 rpm
Weight-to-power ratio: 6.19kg/kW
maximum power output(DIN): 330 PS (325 bhp) (242 kW)at 5750 rpm

Our Sponsor

Fuel Consump.

Fuel system: AE-Brico fuel injection

Chassis & Geomtry

Length:Wheelbase Ratio: 1.79

Brakes

bmep (brake mean effective pressure): 1235.9kPa
Brakes F/R: Di/Di-S
Rear brake diameter: 273mm
Front Brake Diameter: 292mm

Wheels & Tyres

Tyres Front: 8.15-15
Tyres Rear: 8.15-15

Other

RAC rating: 34.3
Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 12 valves in total
Unitary Capacity: 666cc
Steering: power assisted rack & pinion
Number of doors: 2
