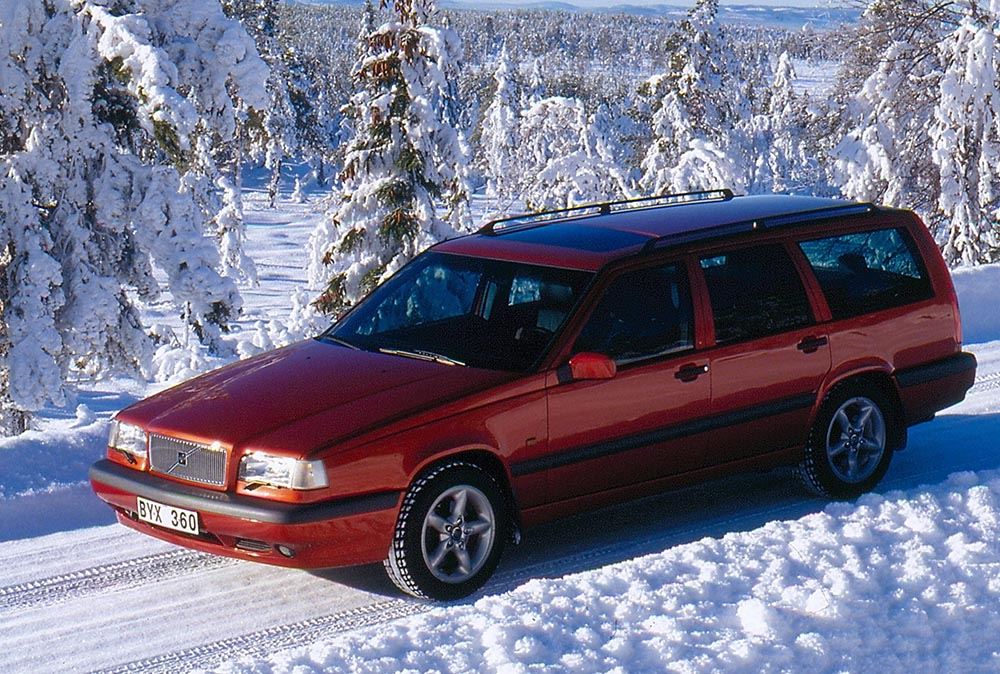

1996 Volvo 850 AWD

Car Specs

1996 Volvo 850 AWD

Information

Volvo

Quick Facts

Build Start: 1996

Available in other variants

read more »

Specifications

General

Build Start: 1996
Model Variant: 850

Dimensions

Wheelbase: 2660mm
Track/tread (rear): 1470mm
Width: 1760mm
Fuel Tank Capacity: 73litres
Track/tread (front): 1520mm
Length: 4720mm
Height: 1410mm
Kerb weight: 1575kg

Body Details

Body Type: 4/5 seater estate/station wagon

Engine Details

Gearbox: 5 speed manual
Engine Type: turbocharged petrol
Final Drive Ratio: 4.00
Cylinders: Straight 5
Bore × Stroke: 83 × 90mm
Compression Ratio: 9:1
Catalytic converter: Y
Engine Position: front
Engine Layout: transverse
Top Gear Ratio: 0.7
Engine Manufacturer: Volvo
Capacity: 2.4 litre (2435cc)
Bore/stroke ratio: 0.92
Sump: wet sumped
Engine Coolant: Water
Aspiration: Turbo

Performance

Drive Wheels: all wheel drive
Maximum Speed: 220km/h
Weight-to-power ratio: 11.12kg/kW
Acceleration 0-100km/h: 8.5s
Power-to-weight ratio: 122.31 PS/tonne (1000 kg)

Our Sponsor

Fuel Consump.

Fuel system: EFI
Fuel Consumption: 15.3/8.8/11.2 l/100km urban/extra-urban/combined

Chassis & Geomtry

Turns Lock-to-Lock: 3.100
Rear suspension: I.MultiLi.
Length:Wheelbase Ratio: 1.77
Front Suspension: I.MS.CS.LW.ARB.

Brakes

Front Brake Diameter: 280mm
bmep (brake mean effective pressure): 1393.4kPa
Brakes F/R: VeDi/Di-S-ABS
Rear brake diameter: 295mm

Wheels & Tyres

Wheel Size Rear: 16x6½J
Tyres Rear: 205/50 ZR 16
Wheel Size Front: 16x6½J
Tyres Front: 205/50 ZR 16

Aerodynamics

Drag coefficient: 0.32

Other

Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 20 valves in total
Specific output(ECE): 78 bhp/litre1.28 bhp/cu in
Specific torque(ECE): 110.88 Nm/litre, 1.34 ft·lb/cu3
Unitary Capacity: 487cc
Steering: power assisted rack & pinion
Number of doors: 5
RAC rating: 21.4
maximum power output(ECE): 193 PS (190 bhp) (142 kW)at 5100 rpm
maximum torque(ECE): 270 Nm (199 ft·lb) (27.5 kgm)at 1800-5000 rpm
