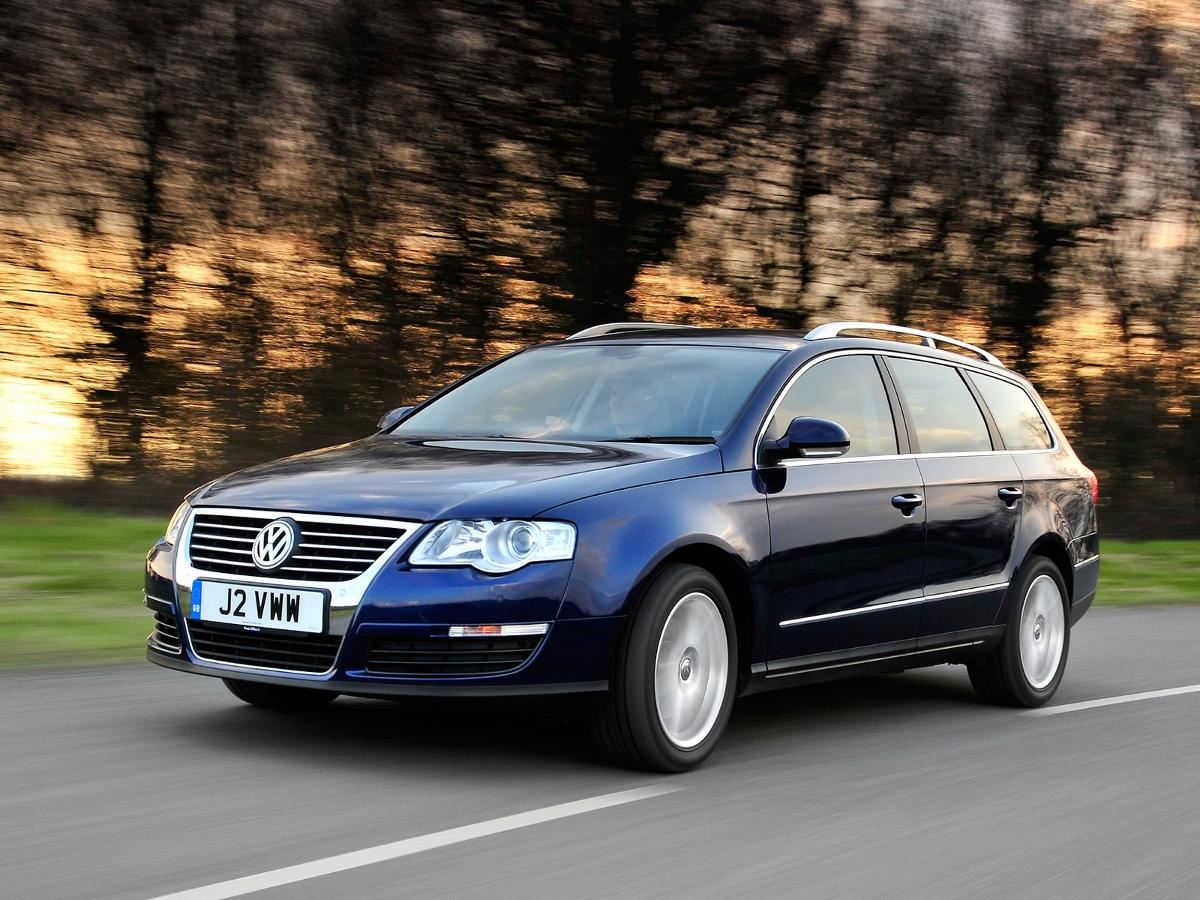

2007 Volkswagen Passat Variant BlueMotion

Car Specs

2007 Volkswagen Passat Variant BlueMotion

Information

Volkswagen

Quick Facts

Build Start: 2007

Available in other variants

read more »

Specifications

General

Build Start: 2007
Model Variant: Passat

Dimensions

Wheelbase: 2709mm
Track/tread (rear): 1551mm
Width: 1820mm
Fuel Tank Capacity: 70litres
Track/tread (front): 1552mm
Length: 4774mm
Height: 1517mm
Kerb weight: 1477kg

Body Details

Body Type: 4/5 seater estate/station wagon

Engine Details

Bore × Stroke: 79.5 × 95.5mm
Top Gear Ratio: 0.63
Specific output: 54.9bhp/litre
Specific torque: 131.86Nm/litre
Sump: wet sumped
Engine Coolant: Water
Aspiration: Turbo D.
Intercooler: Y
Engine Position: front
Engine Type: turbocharged diesel
Cylinders: Straight 4
Gearbox: 5 speed manual
Bore/stroke ratio: 0.83
Final Drive Ratio: 3.65
Engine Construction: cast iron block; aluminium head
Compression Ratio: 18.5:1
Compressor: 1 variable turbine geometry turbocharger
Catalytic converter: Y
Engine Layout: transverse
Engine Manufacturer: Volkswagen
Capacity: 1.9 litre (1896cc)

Performance

Acceleration 0-80km/h (50mph): 8.4s
Standing quarter-mile: 18.6 s
Maximum Speed: 190km/h
Weight-to-power ratio: 19.05kg/kW
Drive Wheels: front wheel drive
Maximum Power Output: 105 @ 4000 rpm
Maximum Torque: 250 Nmlb/ft
Acceleration 0-100km/h: 12.4s
Standing kilometre: 34.3 s
Power-to-weight ratio: 71.39 PS/tonne (1000 kg)

Our Sponsor

Fuel Consump.

Fuel system: direct diesel injection
Carbon dioxide emissions: 137.0 g/km NEDC
Fuel Consumption: 6.8/4.4/5.2 l/100km urban/extra-urban/combined
VED band (UK): E

Chassis & Geomtry

Length:Wheelbase Ratio: 1.76
Rear suspension: I.4Li.ARB.
Front Suspension: I.MS.LW.ARB.

Brakes

Rear brake diameter: 286mm
bmep (brake mean effective pressure): 1657kPa
Front Brake Diameter: 312mm

Wheels & Tyres

Wheel Size Rear: 16x6½J
Tyres Rear: 205/55 R 16 H
Wheel Size Front: 16x6½J
Tyres Front: 205/55 R 16 H

Aerodynamics

Frontal area: 2.29 m²
Drag coefficient: 0.3
CdA: 0.69

Other

Valve Gear: single overhead camshaft (SOHC), 2 valves per cylinder, 8 valves in total
RAC rating: 15.7
Unitary Capacity: 474cc
Number of doors: 5
