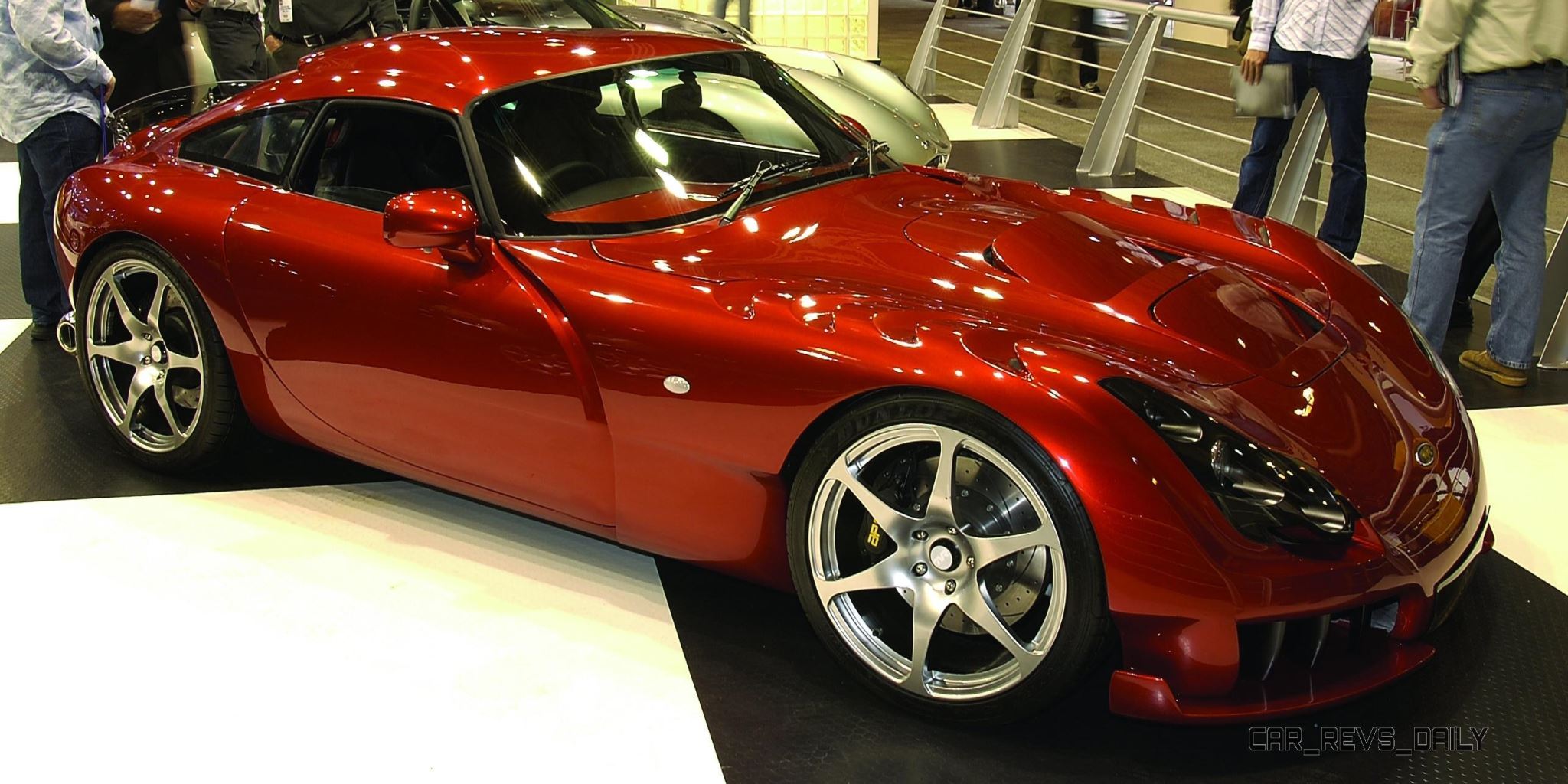

2003 TVR Sagaris

Car Specs

2003 TVR Sagaris

Information

TVR

Quick Facts

Build Start: 2003

read more »

Specifications

General

Build Start: 2003
Model Variant: Sagaris

Dimensions

Wheelbase: 2361mm
Track/tread (rear): 1620mm
Width: 1850mm
Track/tread (front): 1510mm
Length: 4057mm
Height: 1175mm
Kerb weight: 1078kg
Fuel Tank Capacity: 57litres

Body Details

Body Type: 2 seater fixed-head coupé

Engine Details

Catalytic converter: Y
Engine Layout: longitudinal
Engine Type: naturally aspirated petrol
Cylinders: Straight 6
Top Gear Ratio: 0.8
Bore × Stroke: 96 × 92mm
Specific output: 101.6bhp/litre
Specific torque: 118.37Nm/litre
Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Engine Manufacturer: TVR
Gearbox: 5 speed manual
Capacity: 4 litre (3996cc)
Final Drive Ratio: 3.73
Bore/stroke ratio: 1.04
Compression Ratio: 12.2:1

Performance

Acceleration 0-60mph: 3.9s
Standing quarter-mile: 12.7 s, @ 122 mph
Maximum Speed: 298km/h
Weight-to-power ratio: 3.56kg/kW
Acceleration 0-80km/h (50mph): 3.1s
Acceleration 0-160km/h (100mph): 8.5s
Standing kilometre: 21.8 s, @ 241 km/h
Power-to-weight ratio: 381.86 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
Maximum Power Output: 412 @ 7000-7500 rpm
Maximum Torque: 473 Nmlb/ft

Our Sponsor

Fuel Consump.

VED band (UK): M
Carbon dioxide emissions: 406.0 g/km NEDC

Chassis & Geomtry

Front Suspension: I.DW.CS.ARB.
Length:Wheelbase Ratio: 1.72
Weight Distribution: 53% front
Turns Lock-to-Lock: 2.000
Rear suspension: I.DW.CS.ARB.

Brakes

Brakes F/R: VeDi/VeDi
Rear brake diameter: 298mm
bmep (brake mean effective pressure): 1487.5kPa
Front Brake Diameter: 322mm

Wheels & Tyres

Wheel Size Front: 18x8.5J
Tyres Front: 255/35 R 18
Wheel Size Rear: 18x8.5J
Tyres Rear: 255/35 ZR 18

Other

Unitary Capacity: 666cc
Steering: power assisted rack & pinion
RAC rating: 34.3
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 24 valves in total
Number of doors: 2
