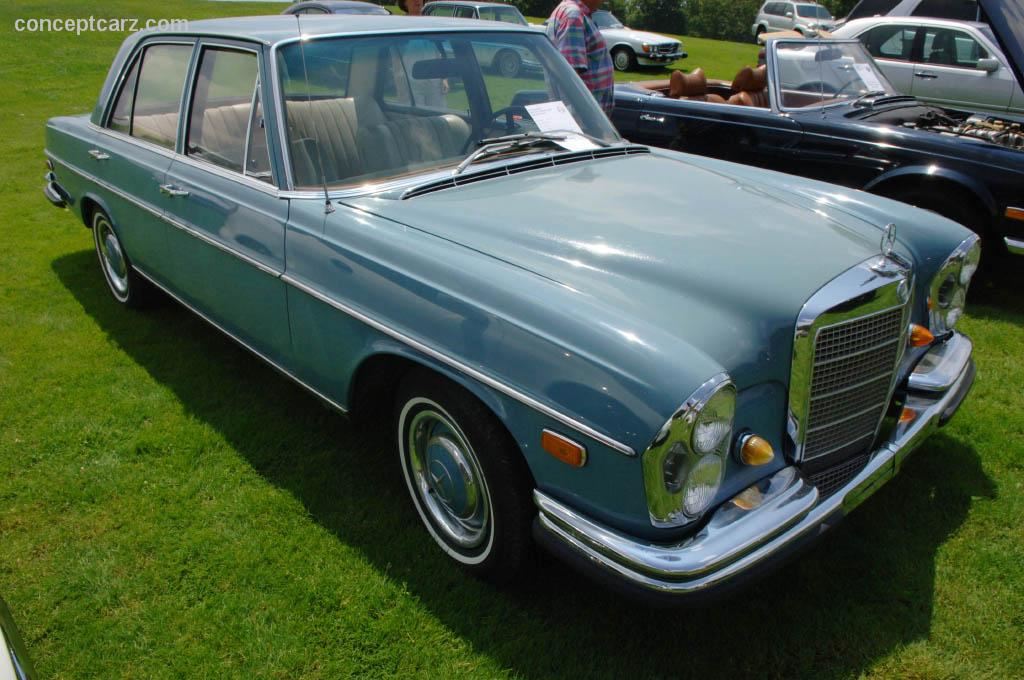

1966 Mercedes-Benz 250 SE

Car Specs

1966 Mercedes-Benz 250 SE

Information

Mercedes-Benz

Quick Facts

Chassis Code: W 108

Build Start: 1966

Available in other variants

read more »

Specifications

General

Build Start: 1966
Model Variant: W 108
Chassis Code: W 108

Dimensions

Kerb weight: 1480kg
Track/tread (front): 1482mm
Length: 4900mm
Height: 1440mm
Fuel Tank Capacity: 82litres
Wheelbase: 2750mm
Track/tread (rear): 1485mm
Width: 1810mm

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Type: naturally aspirated petrol
Top Gear Ratio: 1
Engine Code: M 129 I / 129.980
Capacity: 2.5 litre (2497cc)
Bore/stroke ratio: 1.04
Sump: wet sumped
Crankshaft Bearings: 7
Catalytic converter: N
Engine Layout: longitudinal
Gearbox: 4 speed manual
Engine Manufacturer: Mercedes-Benz
Final Drive Ratio: 3.92
Cylinders: Straight 6
Bore × Stroke: 82 × 78.8mm
Specific output(DIN): 59.3 bhp/litre0.97 bhp/cu in
Specific torque(DIN): 86.5 Nm/litre, 1.05 ft·lb/cu3
Compression Ratio: 9.3:1
Engine Coolant: Water
Aspiration: Normal
Engine Position: front

Performance

maximum power output(DIN): 150 PS (148 bhp) (110 kW)at 5500 rpm
maximum torque(DIN): 216 Nm (159 ft·lb) (22 kgm)at 4200 rpm
Maximum Speed: 190km/h
Weight-to-power ratio: 13.41kg/kW
Acceleration 0-100km/h: 11.8s
Power-to-weight ratio: 101.39 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive

Our Sponsor

Fuel Consump.

Fuel system: Bosch fuel injection

Chassis & Geomtry

Turns Lock-to-Lock: 4.100
Front Suspension: I.DW.AS.ARB.
Turning Circle: 11.50 m
Rear suspension: I.SwAxle.AS.ARB.
Length:Wheelbase Ratio: 1.78

Brakes

Rear brake diameter: 279mm
Brakes F/R: Di/Di-S
bmep (brake mean effective pressure): 1087kPa
Front Brake Diameter: 273mm

Wheels & Tyres

Wheel Size Front: 6J x 14 HB
Tyres Front: 185 H 14
Wheel Size Rear: 6J x 14 HB
Tyres Rear: 185 H 14

Other

Model code: W 108 III
Unitary Capacity: 416.17cc
Designer: Paul Bracq
RAC rating: 25.0
Valve Gear: single overhead camshaft (SOHC), 2 valves per cylinder, 12 valves in total
Number of doors: 4
