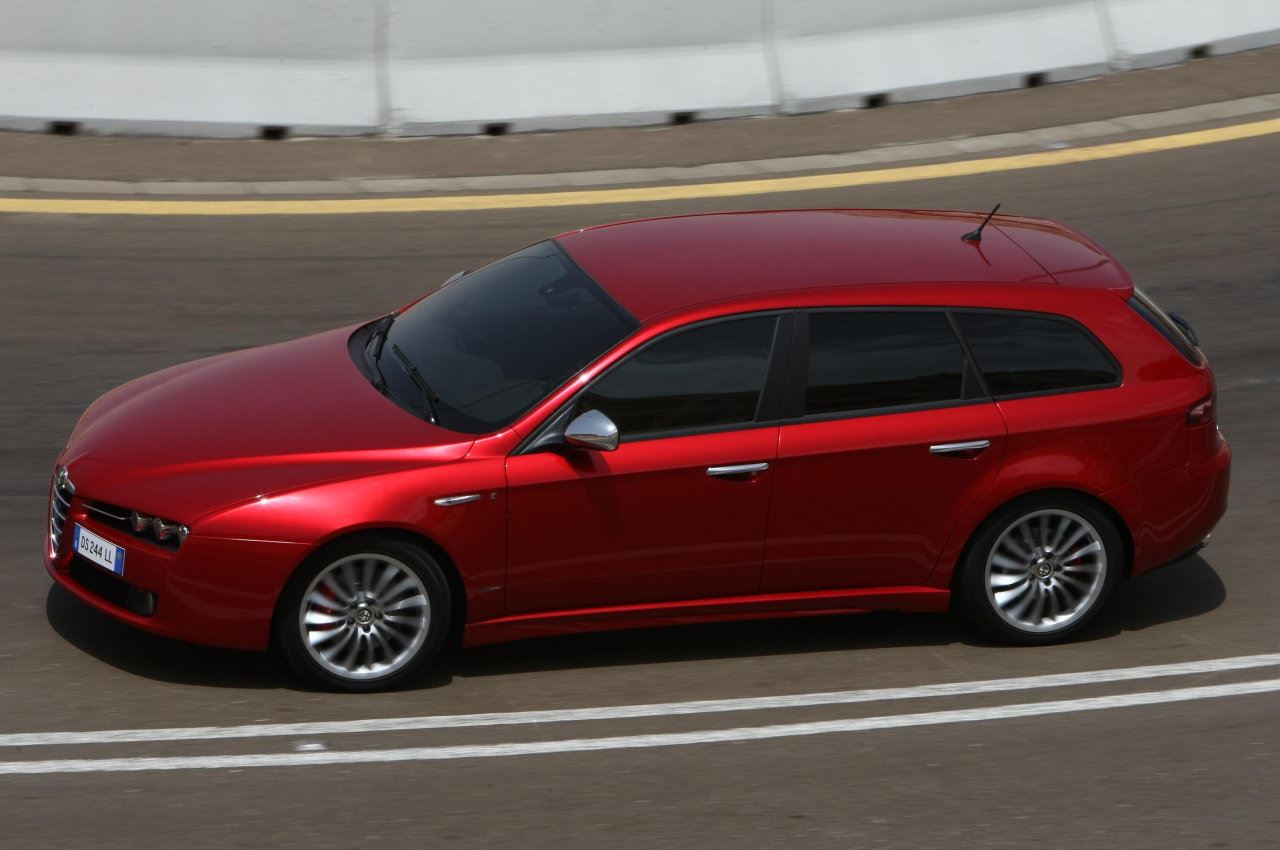

2006 Alfa Romeo 159 Sportwagon 1.9 JTDm 16v

Car Specs

2006 Alfa Romeo 159 Sportwagon 1.9 JTDm 16v

Information

Alfa Romeo

Quick Facts

Build Start: 2006

Available in other variants

read more »

Specifications

General

Build Start: 2006
Model Variant: 159

Dimensions

Length: 4660mm
Height: 1425mm
Kerb weight: 1585kg
Wheelbase: 2700mm
Width: 1828mm
Fuel Tank Capacity: 70litres

Body Details

Body Type: 4/5 seater estate/station wagon

Engine Details

Engine Type: turbocharged diesel
Top Gear Ratio: 0.61
Cylinders: Straight 4
Bore × Stroke: 82 × 90.4mm
Compression Ratio: 17.5:1
Intercooler: Y
Engine Position: front
Gearbox: 6 speed manual
Engine Manufacturer: Alfa Romeo
Final Drive Ratio: 3.65
Capacity: 1.9 litre (1910cc)
Bore/stroke ratio: 0.91
Sump: wet sumped
Engine Coolant: Water
Aspiration: Turbo D.
Catalytic converter: Y
Engine Layout: transverse

Performance

Acceleration 0-100km/h: 9.6s
Maximum Speed: 208km/h
Weight-to-power ratio: 14.36kg/kW
Drive Wheels: front wheel drive
Standing kilometre: 31.3 s
Power-to-weight ratio: 94.67 PS/tonne (1000 kg)

Our Sponsor

Fuel Consump.

Carbon dioxide emissions: 162.0 g/km NEDC
Fuel system: Multijet direct diesel injection
Fuel Consumption: 8.3/4.8/6.1 l/100km urban/extra-urban/combined
VED band (UK): G

Chassis & Geomtry

Front Suspension: I.DW.
Rear suspension: I.MultiLi.
Length:Wheelbase Ratio: 1.73

Brakes

Brakes F/R: VeDi/Di-S-ABS
Rear brake diameter: 278mm
bmep (brake mean effective pressure): 2105.4kPa
Front Brake Diameter: 305mm

Wheels & Tyres

Tyres Front: 215/55 R 16
Tyres Rear: 215/55 R 16

Other

RAC rating: 16.7
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 16 valves in total
Specific output(EC): 77.5 bhp/litre1.27 bhp/cu in
Specific torque(EC): 167.54 Nm/litre, 2.02 ft·lb/cu3
Unitary Capacity: 477.5cc
Designer: Giugiaro/Alfa Romeo
maximum power output(EC): 150 PS (148 bhp) (110 kW)at 4000 rpm
maximum torque(EC): 320 Nm (236 ft·lb) (32.6 kgm)at 2000 rpm
Number of doors: 5
Steering: power assisted rack & pinion
