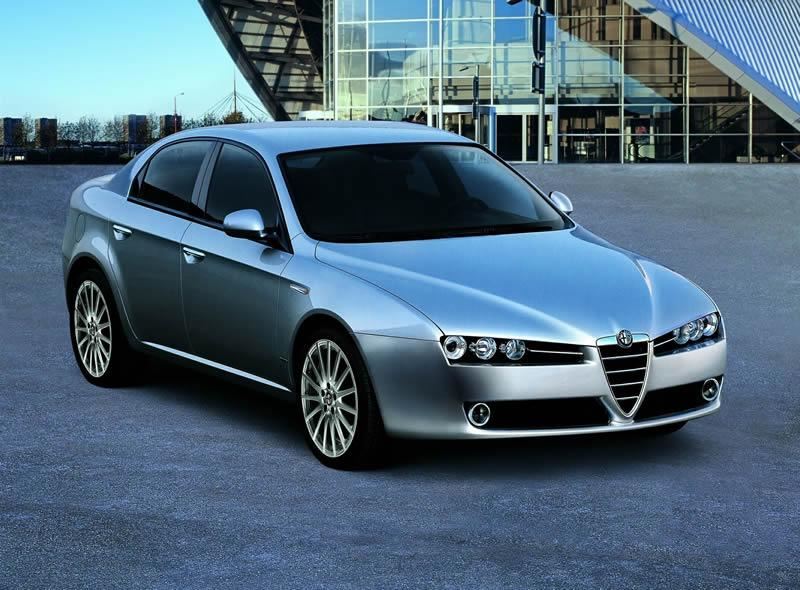

2005 Alfa Romeo 159 2.2 JTS

Car Specs

2005 Alfa Romeo 159 2.2 JTS

Information

Alfa Romeo

Quick Facts

Build Start: 2005

Available in other variants

read more »

Specifications

General

Build Start: 2005
Model Variant: 159

Dimensions

Track/tread (front): 1578mm
Length: 4660mm
Height: 1417mm
Kerb weight: 1490kg
Wheelbase: 2700mm
Track/tread (rear): 1555mm
Width: 1828mm
Fuel Tank Capacity: 70litres

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Position: front
Engine Manufacturer: Alfa Romeo
Top Gear Ratio: 0.86
Cylinders: Straight 4
Bore × Stroke: 86 × 94.6mm
Specific output: 82.8bhp/litre
Specific torque: 104.64Nm/litre
Compression Ratio: 11.3:1
Engine Coolant: Water
Aspiration: Normal
Catalytic converter: Y
Engine Layout: transverse
Engine Type: naturally aspirated petrol
Gearbox: 6 speed manual
Engine Code: 939 A 5000
Final Drive Ratio: 4.18
Capacity: 2.2 litre (2198cc)
Bore/stroke ratio: 0.91
Sump: wet sumped
Crankshaft Bearings: 5

Performance

Acceleration 0-100km/h: 8.8s
Maximum Speed: 222km/h
Weight-to-power ratio: 10.98kg/kW
Drive Wheels: front wheel drive
Standing kilometre: 29.6 s
Power-to-weight ratio: 123.85 PS/tonne (1000 kg)
Maximum Power Output: 185 @ 6500 rpm
Maximum Torque: 230 Nmlb/ft

Our Sponsor

Fuel Consump.

Carbon dioxide emissions: 221.0 g/km NEDC
Fuel Consumption: 13.0/7.3/9.4 l/100km urban/extra-urban/combined
VED band (UK): K
Fuel system: MED 7.6.1 direct injection

Chassis & Geomtry

Front Suspension: I.MultiLi.
Length:Wheelbase Ratio: 1.73
Rear suspension: I.DW.

Brakes

Brakes F/R: VeDi/Di-S-ABS
Rear brake diameter: 278mm
bmep (brake mean effective pressure): 1315kPa
Front Brake Diameter: 305mm

Wheels & Tyres

Tyres Front: 215/55 R 16
Tyres Rear: 215/55 R 16

Aerodynamics

Drag coefficient: 0.325
CdA: 0.71
Frontal area: 2.17 m²

Other

Designer: Giugiaro/Alfa Romeo
RAC rating: 18.3
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 16 valves in total
Number of doors: 4
Steering: power assisted rack & pinion
Unitary Capacity: 549.5cc
