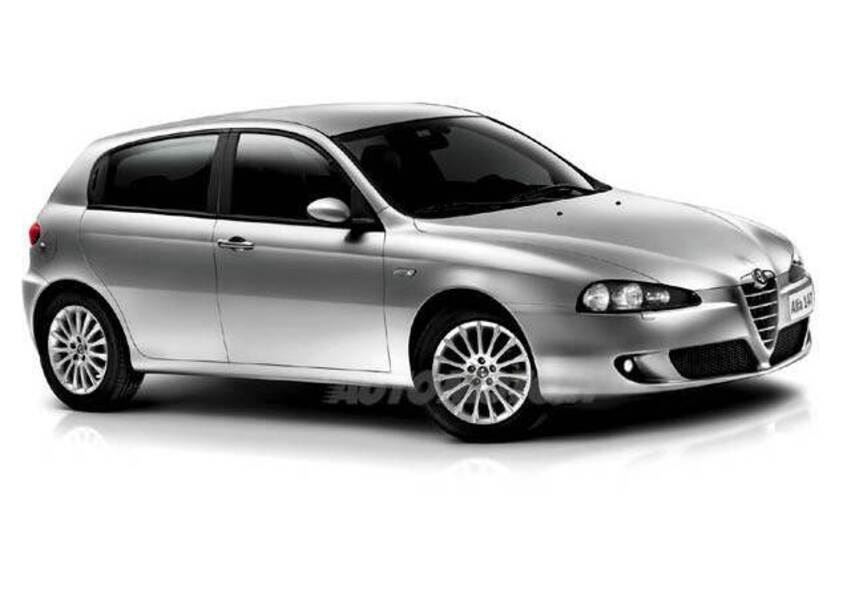

2004 Alfa Romeo 147 1.9 JTD

Car Specs

2004 Alfa Romeo 147 1.9 JTD

Information

Alfa Romeo

Quick Facts

Build Start: 2004

Available in other variants

read more »

Specifications

General

Build Start: 2004
Model Variant: 147

Dimensions

Wheelbase: 2546mm
Track/tread (rear): 1502mm
Width: 1729mm
Fuel Tank Capacity: 60litres
Track/tread (front): 1518mm
Length: 4223mm
Height: 1442mm
Kerb weight: 1290kg

Body Details

Body Type: 4/5 seater hatchback

Engine Details

Bore/stroke ratio: 0.91
Sump: wet sumped
Engine Coolant: Water
Aspiration: Turbo D.
Engine Position: front
Top Gear Ratio: 0.61
Engine Manufacturer: Alfa Romeo
Capacity: 1.9 litre (1910cc)
Bore × Stroke: 82 × 90.4mm
Compression Ratio: 18:1
Catalytic converter: Y
Engine Layout: transverse
Gearbox: 6 speed manual
Engine Type: turbocharged diesel
Final Drive Ratio: 3.56
Cylinders: Straight 4

Performance

Acceleration 0-100km/h: 8.8s
Maximum Speed: 208km/h
Weight-to-power ratio: 11.69kg/kW
Drive Wheels: front wheel drive
Standing kilometre: 30 s
Power-to-weight ratio: 116.32 PS/tonne (1000 kg)

Fuel Consump.

Fuel system: Bo EDC 16 direct diesel injection
Carbon dioxide emissions: 157.0 g/km NEDC
Fuel Consumption: 8.0/4.7/5.9 l/100km urban/extra-urban/combined
VED band (UK): G

Chassis & Geomtry

Front Suspension: I.DW.TA.ARB.
Length:Wheelbase Ratio: 1.66
Rear suspension: I.MS.ARB.

Brakes

Brakes F/R: VeDi/Di-S-ABS
Rear brake diameter: 251mm
bmep (brake mean effective pressure): 2006.7kPa
Front Brake Diameter: 284mm

Wheels & Tyres

Tyres Front: 205/55 R 16
Tyres Rear: 205/55 R 16

Other

maximum power output(EC): 150 PS (148 bhp) (110 kW)at 4000 rpm
maximum torque(EC): 305 Nm (225 ft·lb) (31.1 kgm)at 2000 rpm
RAC rating: 16.7
Valve Gear: double overhead camshaft (DOHC), 4 valves per cylinder, 16 valves in total
Specific output(EC): 77.5 bhp/litre1.27 bhp/cu in
Specific torque(EC): 159.69 Nm/litre, 1.93 ft·lb/cu3
Unitary Capacity: 477.5cc
Number of doors: 3
Steering: power assisted rack & pinion
