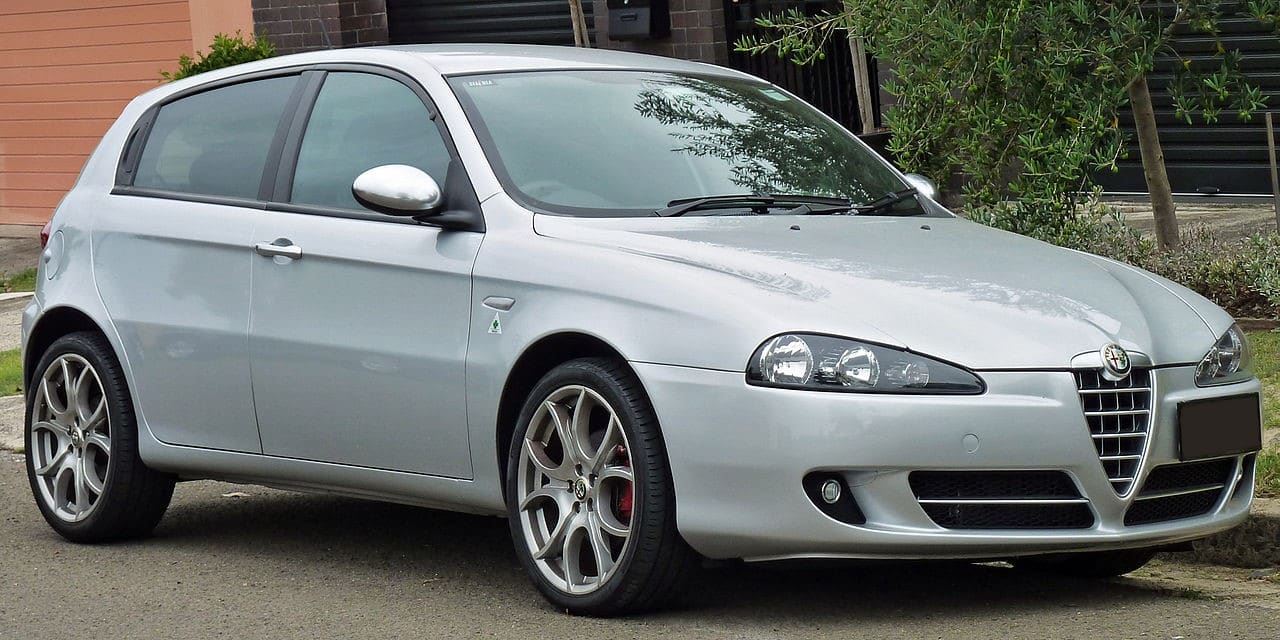

2004 Alfa Romeo 147 1.9 JTD

Thông số kỹ thuật xe hơi

2004 Alfa Romeo 147 1.9 JTD

Thông tin

Alfa Romeo

Quick Facts

Build Start: 2004

Available in other variants

read more »

Thông số kỹ thuật

General

Build Start: 2004
Model Variant: 147

Dimensions

Wheelbase: 2546mm
Track/tread (rear): 1502mm
Width: 1729mm
Fuel Tank Capacity: 60litres
Track/tread (front): 1518mm
Length: 4223mm
Height: 1442mm
Kerb weight: 1270kg

Body Details

Body Type: 4/5 seater hatchback

Engine Details

Engine Position: front
Top Gear Ratio: 0.76
Engine Manufacturer: Alfa Romeo
Capacity: 1.9 litre (1910cc)
Bore/stroke ratio: 0.91
Sump: wet sumped
Engine Coolant: Water
Aspiration: Turbo D.
Engine Layout: transverse
Gearbox: 5 speed manual
Engine Type: turbocharged diesel
Final Drive Ratio: 3.35
Cylinders: Straight 4
Bore × Stroke: 82 × 90.4mm
Compression Ratio: 18.5:1
Catalytic converter: Y

Performance

Maximum Speed: 191km/h
Weight-to-power ratio: 15.07kg/kW
Drive Wheels: front wheel drive
Acceleration 0-100km/h: 9.9s
Power-to-weight ratio: 90.21 PS/tonne (1000 kg)
Standing kilometre: 32.5 s

Our Sponsor

Fuel Consump.

Carbon dioxide emissions: 155.0 g/km NEDC
Fuel system: Bo EDC 15 direct diesel injection
Fuel Consumption: 7.8/4.7/5.8 l/100km urban/extra-urban/combined
VED band (UK): G

Chassis & Geomtry

Front Suspension: I.DW.TA.ARB.
Length:Wheelbase Ratio: 1.66
Rear suspension: I.MS.ARB.

Brakes

Brakes F/R: VeDi/Di-S-ABS
Rear brake diameter: 251mm
Front Brake Diameter: 284mm
bmep (brake mean effective pressure): 1809.3kPa

Wheels & Tyres

Tyres Front: 185/65 HR 15
Tyres Rear: 185/65 HR 15

Other

RAC rating: 16.7
maximum power output(EC): 115 PS (113 bhp) (84 kW)at 4000 rpm
maximum torque(EC): 275 Nm (203 ft·lb) (28 kgm)at 2000 rpm
Number of doors: 3
Steering: power assisted rack & pinion
Valve Gear: single overhead camshaft (SOHC), 2 valves per cylinder, 8 valves in total
Specific output(EC): 59.2 bhp/litre0.97 bhp/cu in
Specific torque(EC): 143.98 Nm/litre, 1.74 ft·lb/cu3
Unitary Capacity: 477.5cc
