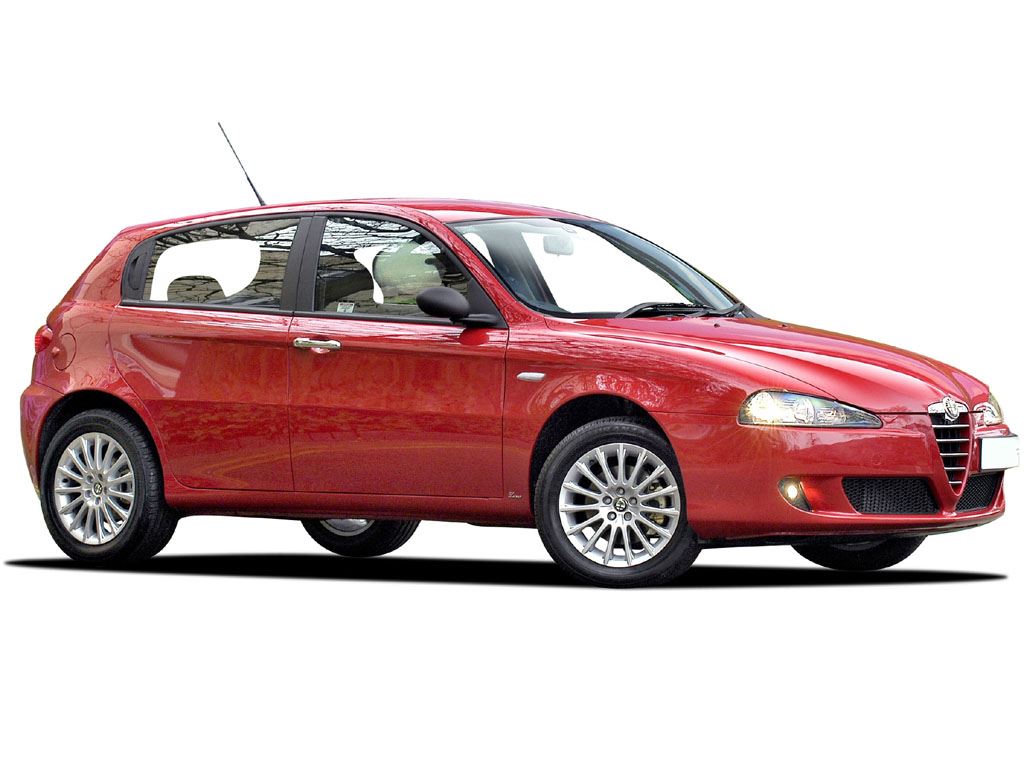

2000 Alfa Romeo 147 1.9 JTD

Car Specs

2000 Alfa Romeo 147 1.9 JTD

Information

Alfa Romeo

Quick Facts

Build Start: 2000

Available in other variants

read more »

Specifications

General

Build Start: 2000
Model Variant: 147

Dimensions

Wheelbase: 2546mm
Track/tread (rear): 1502mm
Width: 1729mm
Fuel Tank Capacity: 60litres
Track/tread (front): 1518mm
Length: 4170mm
Height: 1442mm
Kerb weight: 1270kg

Body Details

Body Type: 4/5 seater hatchback

Engine Details

Engine Coolant: Water
Aspiration: Turbo D.
Engine Position: front
Gearbox: 5 speed manual
Final Drive Ratio: 3.35
Engine Manufacturer: Alfa Romeo
Capacity: 1.9 litre (1910cc)
Bore/stroke ratio: 0.91
Sump: wet sumped
Catalytic converter: Y
Engine Layout: transverse
Top Gear Ratio: 0.76
Engine Type: turbocharged diesel
Cylinders: Straight 4
Bore × Stroke: 82 × 90.4mm
Compression Ratio: 18.5:1

Performance

Acceleration 0-100km/h: 10.5s
Maximum Speed: 189km/h
Weight-to-power ratio: 15.48kg/kW
Drive Wheels: front wheel drive
Standing kilometre: 33 s
Power-to-weight ratio: 87.82 PS/tonne (1000 kg)

Our Sponsor

Fuel Consump.

Fuel system: common rail diesel injection
Carbon dioxide emissions: 152.0 g/km NEDC

Chassis & Geomtry

Turning Circle: 11.50 m
Rear suspension: I.MS.ARB.
Length:Wheelbase Ratio: 1.64
Front Suspension: I.DW.ARB.

Brakes

Front Brake Diameter: 284mm
bmep (brake mean effective pressure): 1809.3kPa
Brakes F/R: VeDi/Di-S
Rear brake diameter: 251mm

Wheels & Tyres

Tyres Rear: 185/65 HR 15
Tyres Front: 185/65 HR 15

Other

maximum power output(EC): 112 PS (110 bhp) (82 kW)at 4000 rpm
maximum torque(EC): 275 Nm (203 ft·lb) (28 kgm)at 2000 rpm
Unitary Capacity: 477.5cc
Steering: power assisted rack & pinion
Number of doors: 3
RAC rating: 16.7
Valve Gear: single overhead camshaft (SOHC), 2 valves per cylinder, 8 valves in total
Specific output(EC): 57.6 bhp/litre0.94 bhp/cu in
Specific torque(EC): 143.98 Nm/litre, 1.74 ft·lb/cu3
