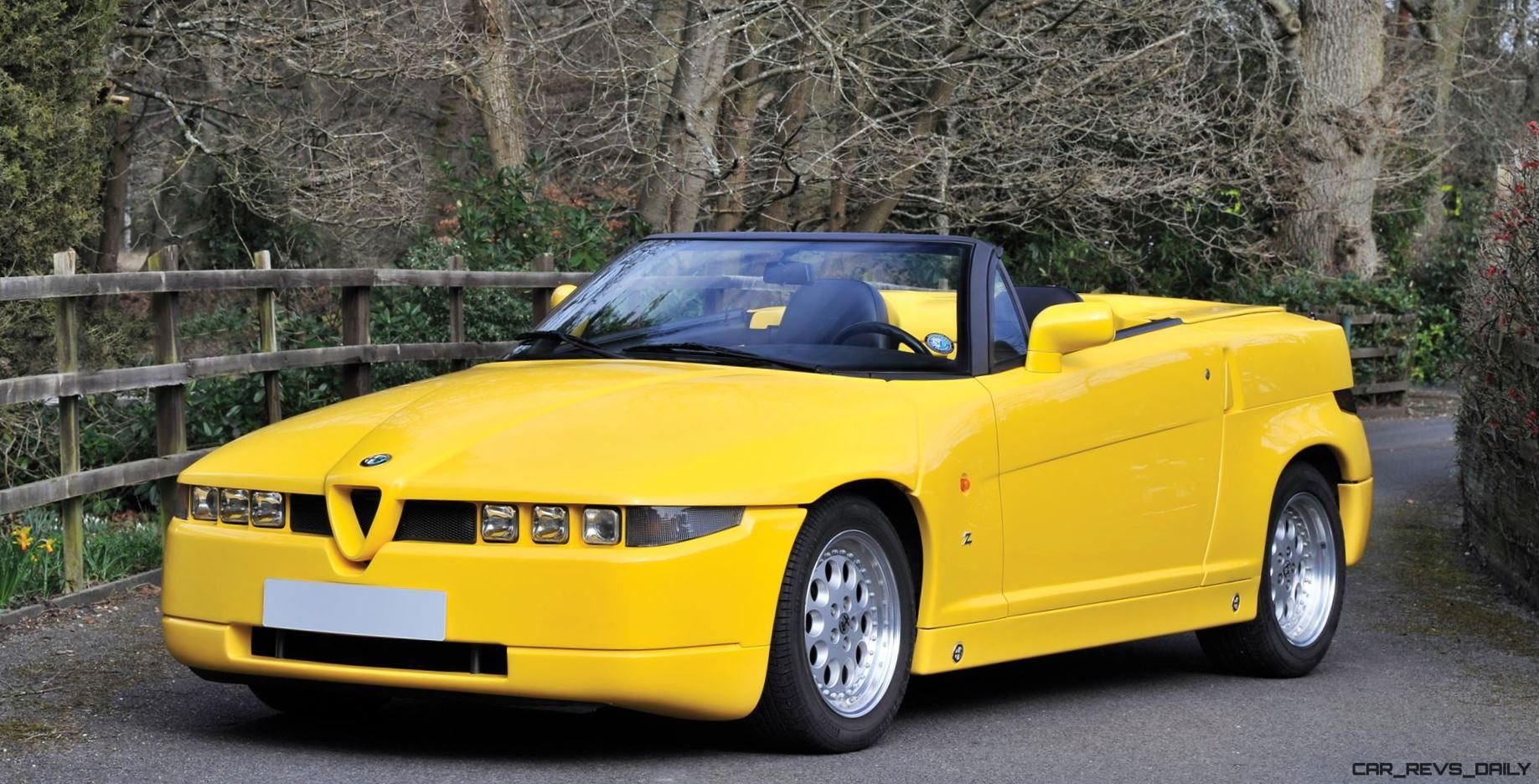

1993 Alfa Romeo RZ

Car Specs

1993 Alfa Romeo RZ

Information

Alfa Romeo

Quick Facts

Build Start: 1993

read more »

Specifications

General

Build Start: 1993
Model Variant: RZ

Dimensions

Track/tread (front): 1464mm
Length: 4059mm
Height: 1300mm
Fuel Tank Capacity: 70litres
Wheelbase: 2510mm
Track/tread (rear): 1426mm
Width: 1730mm
Ground clearance: 100mm
Kerb weight: 1380kg

Body Details

Body Type: 2 seater convertible/cabriolet

Engine Details

Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Top Gear Ratio: 0.78
Engine Manufacturer: Alfa Romeo
Capacity: 3 litre (2959cc)
Bore/stroke ratio: 1.28
Compression Ratio: 10:1
Catalytic converter: Y
Engine Layout: longitudinal
Gearbox: 5 speed manual
Final Drive Ratio: 3.91
Engine Type: naturally aspirated petrol
Cylinders: V 6 in 60° vee
Bore × Stroke: 93 × 72.6mm
Specific output(DIN): 68.9 bhp/litre1.13 bhp/cu in
Specific torque(DIN): 82.8 Nm/litre, 1 ft·lb/cu3
Crankshaft Bearings: 4

Performance

Acceleration 0-100km/h: 7.5s
Maximum Speed: 230km/h
Weight-to-power ratio: 9.07kg/kW
Drive Wheels: rear wheel drive
maximum power output(DIN): 207 PS (204 bhp) (152 kW)at 6200 rpm
maximum torque(DIN): 245 Nm (181 ft·lb) (25 kgm)at 4500 rpm
Standing kilometre: 29.1 s
Power-to-weight ratio: 149.88 PS/tonne (1000 kg)

Our Sponsor

Fuel Consump.

Fuel Consumption: 7.2/9.3/13.2 l/100km 90km/h / 120km/h / urban
Fuel system: Bo Motronic ML 4.1 fuel inj.

Chassis & Geomtry

Front Suspension: I.CS.ARB.
Length:Wheelbase Ratio: 1.62
Rear suspension: dD.

Brakes

Brakes F/R: VeDi/VeDi-S
bmep (brake mean effective pressure): 1040.5kPa

Wheels & Tyres

Wheel Size Front: 16x7J
Tyres Front: 205/55 ZR 16
Wheel Size Rear: 16x8J
Tyres Rear: 225/50 ZR 16

Other

Designer: Zagato
RAC rating: 32.2
Unitary Capacity: 493.17cc
Number of doors: 2
Steering: power assisted rack & pinion
Valve Gear: single overhead camshaft (SOHC), 2 valves per cylinder, 12 valves in total
