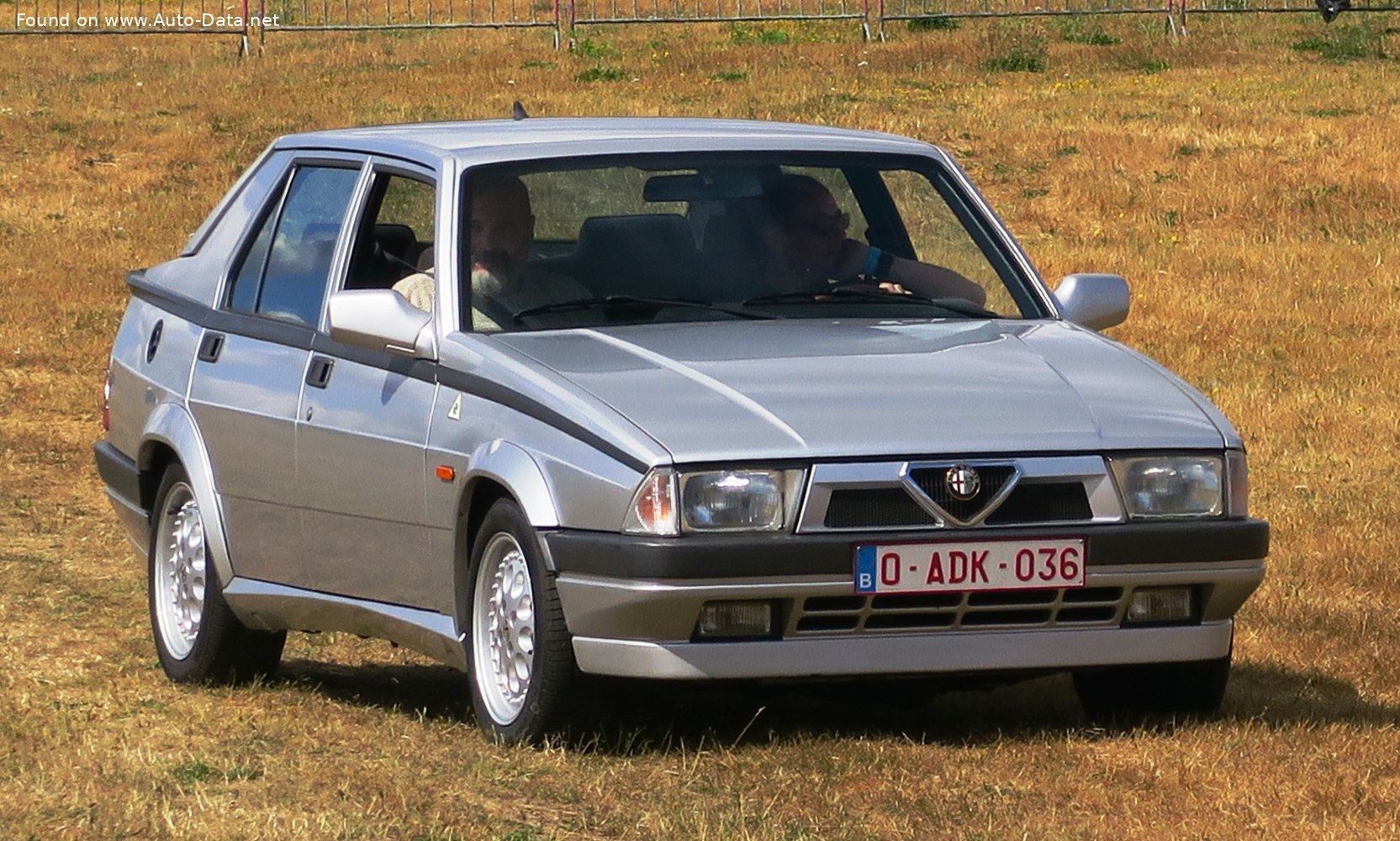

1992 Alfa Romeo 75 1.6 ie

Car Specs

1992 Alfa Romeo 75 1.6 ie

Information

Alfa Romeo

Quick Facts

Build Start: 1992

Available in other variants

read more »

Specifications

General

Build Start: 1992
Model Variant: 75

Dimensions

Wheelbase: 2510mm
Track/tread (rear): 1358mm
Width: 1631mm
Ground clearance: 122mm
Kerb weight: 1090kg
Track/tread (front): 1368mm
Length: 4331mm
Height: 1349mm
Fuel Tank Capacity: 49litres

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Manufacturer: Alfa Romeo
Capacity: 1.6 litre (1570cc)
Bore/stroke ratio: 0.95
Compression Ratio: 9:1
Engine Coolant: Water
Aspiration: Normal
Engine Layout: longitudinal
Top Gear Ratio: 0.78
Engine Type: naturally aspirated petrol
Cylinders: Straight 4
Bore × Stroke: 78 × 82mm
Specific output(DIN): 65.6 bhp/litre1.08 bhp/cu in
Specific torque(DIN): 84.08 Nm/litre, 1.02 ft·lb/cu3
Crankshaft Bearings: 5
Catalytic converter: Y
Engine Position: front
Gearbox: 5 speed manual
Final Drive Ratio: 4.56

Performance

maximum power output(DIN): 104 PS (103 bhp) (77 kW)at 5800 rpm
maximum torque(DIN): 132 Nm (97 ft·lb) (13.5 kgm)at 3800 rpm
Acceleration 0-100km/h: 11.3s
Maximum Speed: 180km/h
Weight-to-power ratio: 14.19kg/kW
Standing kilometre: 33 s
Power-to-weight ratio: 95.81 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive

Our Sponsor

Fuel Consump.

Fuel system: Bo Motronic ML 4.1

Chassis & Geomtry

Front Suspension: I.DW.TB.ARB.
Turning Circle: 10.90 m
Rear suspension: dD.WL.CS.ARB.
Length:Wheelbase Ratio: 1.73

Brakes

bmep (brake mean effective pressure): 1056.5kPa
Brakes F/R: Di/Di

Aerodynamics

Drag coefficient: 0.34

Other

Steering: rack & pinion
RAC rating: 15.1
Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 8 valves in total
Unitary Capacity: 392.5cc
Number of doors: 4
