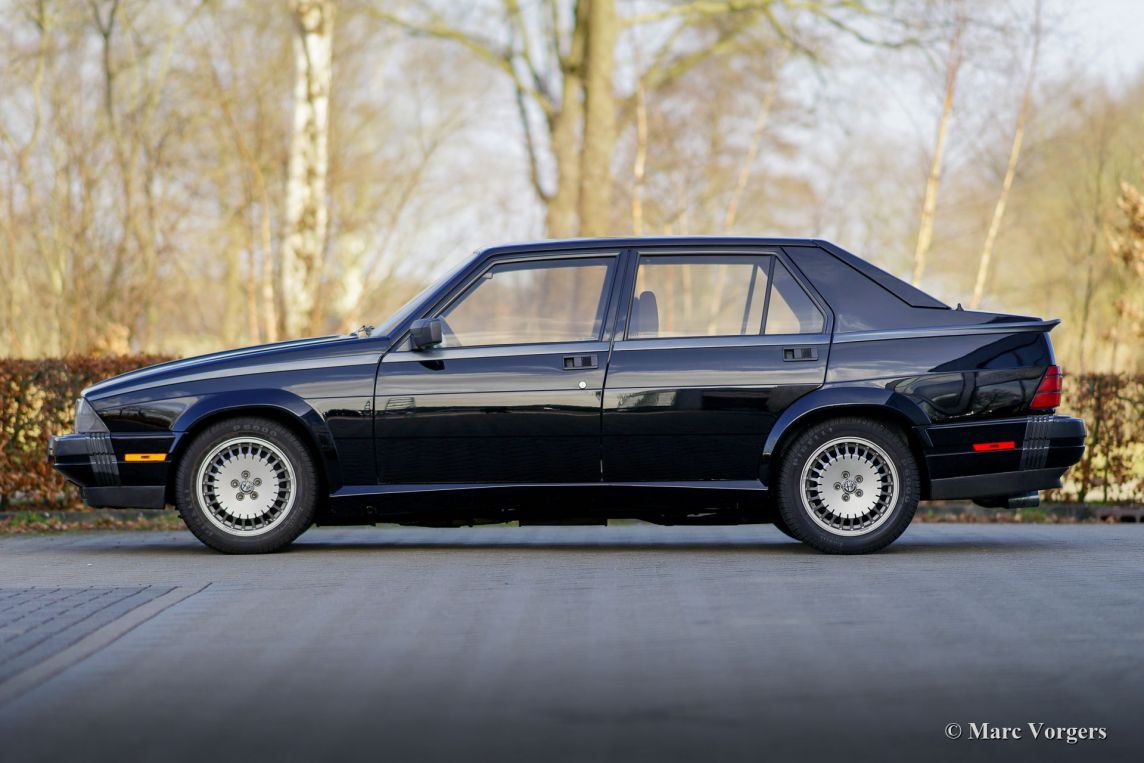

1987 Alfa Romeo 75 3.0 V6

Speċifikazzjonijiet tal-karozzi

1987 Alfa Romeo 75 3.0 V6

Informazzjoni

Alfa Romeo

Quick Facts

Build Start: 1987

Available in other variants

read more »

Speċifikazzjonijiet

General

Build Start: 1987
Model Variant: 75

Dimensions

Wheelbase: 2510mm
Track/tread (rear): 1356mm
Width: 1631mm
Ground clearance: 120mm
Kerb weight: 1210kg
Fuel Tank Capacity: 68litres
Track/tread (front): 1367mm
Length: 4420mm
Height: 1349mm

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Type: naturally aspirated petrol
Engine Code: 119/11
Capacity: 3 litre (2959cc)
Bore/stroke ratio: 1.28
Top Gear Ratio: 0.78
Engine Construction: aluminium alloy head & block
Compression Ratio: 9.5:1
Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Engine Manufacturer: Alfa Romeo
Cylinders: V 6 in 60° vee
Bore × Stroke: 93 × 72.6mm
Gearbox: 5 speed manual
Final Drive Ratio: 3.54
Specific output(DIN): 63.2 bhp/litre1.04 bhp/cu in
Specific torque(DIN): 82.8 Nm/litre, 1 ft·lb/cu3
Sump: wet sumped
Crankshaft Bearings: 4
Catalytic converter: N
Engine Layout: longitudinal

Performance

maximum power output(DIN): 190 PS (187 bhp) (139 kW)at 5800 rpm
maximum torque(DIN): 245 Nm (181 ft·lb) (25 kgm)at 4000 rpm
Acceleration 0-80km/h (50mph): 5.7s
Acceleration 0-160km/h (100mph): 20.6s
Standing kilometre: 29.4 s, @ 180 km/h
Power-to-weight ratio: 156.69 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
Acceleration 0-60mph: 7.5s
Standing quarter-mile: 16.1 s, @ 88 mph
Maximum Speed: 220km/h
Weight-to-power ratio: 8.68kg/kW

Our Sponsor

Fuel Consump.

Fuel system: Bo L-Jet fuel inj.

Chassis & Geomtry

Turns Lock-to-Lock: 3.250
Front Suspension: I.DW.TB.ARB.
Length:Wheelbase Ratio: 1.76
Weight Distribution: 55.4% front
Turning Circle: 10.90 m
Rear suspension: dD.WL.CS.ARB.

Brakes

Brakes F/R: VeDi/Di-S
Rear brake diameter: 250mm
bmep (brake mean effective pressure): 1040.5kPa
Front Brake Diameter: 266mm

Wheels & Tyres

Tyres Front: 195/60 VR 14
Wheel Size Front: 5½x5½
Wheel Size Rear: 6½x6½
Tyres Rear: 195/60 VR 14

Aerodynamics

Frontal area: 1.91 m²
CdA: 0.65
Drag coefficient: 0.34

Other

RAC rating: 32.2
Valve Gear: single overhead camshaft (SOHC), 2 valves per cylinder, 12 valves in total
Unitary Capacity: 493.17cc
Number of doors: 4
Steering: rack & pinion
