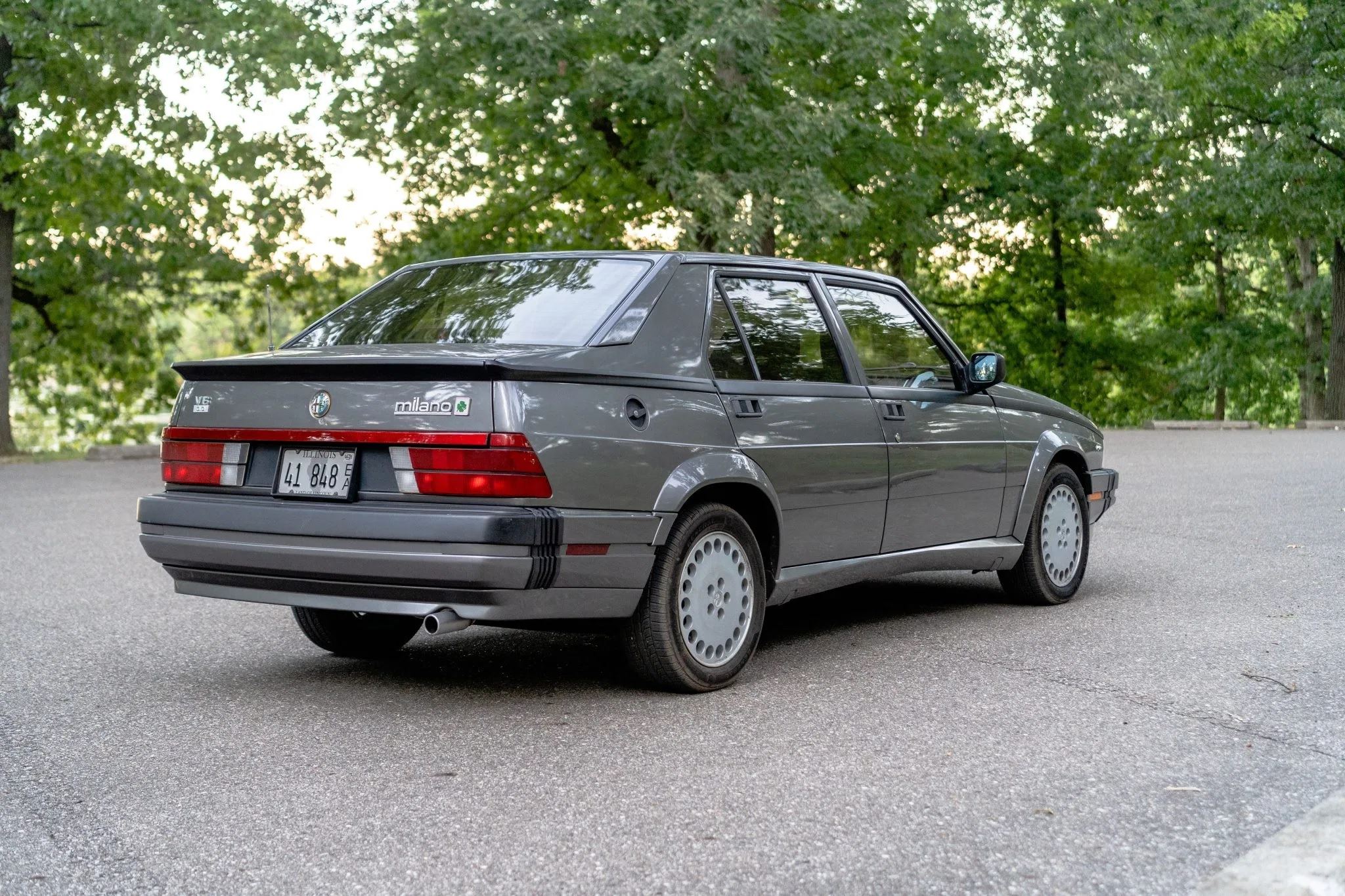

1986 Alfa Romeo 75 V6

Car Specs

1986 Alfa Romeo 75 V6

Information

Alfa Romeo

Quick Facts

Build Start: 1986

Available in other variants

read more »

Specifications

General

Build Start: 1986
Model Variant: 75

Dimensions

Wheelbase: 2510mm
Track/tread (rear): 1356mm
Width: 1631mm
Ground clearance: 120mm
Kerb weight: 1160kg
Track/tread (front): 1367mm
Length: 4331mm
Height: 1349mm
Fuel Tank Capacity: 68litres

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Coolant: Water
Aspiration: Normal
Engine Position: front
Gearbox: 5 speed manual
Final Drive Ratio: 4.10
Engine Manufacturer: Alfa Romeo
Capacity: 2.5 litre (2492cc)
Bore/stroke ratio: 1.29
Compression Ratio: 9:1
Crankshaft Bearings: 4
Catalytic converter: Y
Engine Layout: longitudinal
Top Gear Ratio: 0.78
Engine Type: naturally aspirated petrol
Cylinders: V 6
Bore × Stroke: 88 × 68.3mm
Specific output(DIN): 61.4 bhp/litre1.01 bhp/cu in
Specific torque(DIN): 82.66 Nm/litre, 1 ft·lb/cu3

Performance

Acceleration 0-100km/h: 9s
Power-to-weight ratio: 133.73 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
maximum power output(DIN): 155 PS (153 bhp) (114 kW)at 5500 rpm
maximum torque(DIN): 206 Nm (152 ft·lb) (21 kgm)at 3200 rpm
Maximum Speed: 205km/h
Weight-to-power ratio: 10.17kg/kW

Our Sponsor

Fuel Consump.

Fuel system: Bo L-Jet fuel inj.

Chassis & Geomtry

Turning Circle: 10.90 m
Rear suspension: dD.WL.CS.ARB.
Front Suspension: I.DW.TB.ARB.
Length:Wheelbase Ratio: 1.73

Brakes

bmep (brake mean effective pressure): 1038.8kPa
Brakes F/R: VeDi/Di-S

Aerodynamics

Drag coefficient: 0.34
CdA: 0.65
Frontal area: 1.91 m²

Other

Unitary Capacity: 415.33cc
Number of doors: 4
Steering: rack & pinion
RAC rating: 28.8
Valve Gear: single overhead camshaft (SOHC), 2 valves per cylinder, 12 valves in total
