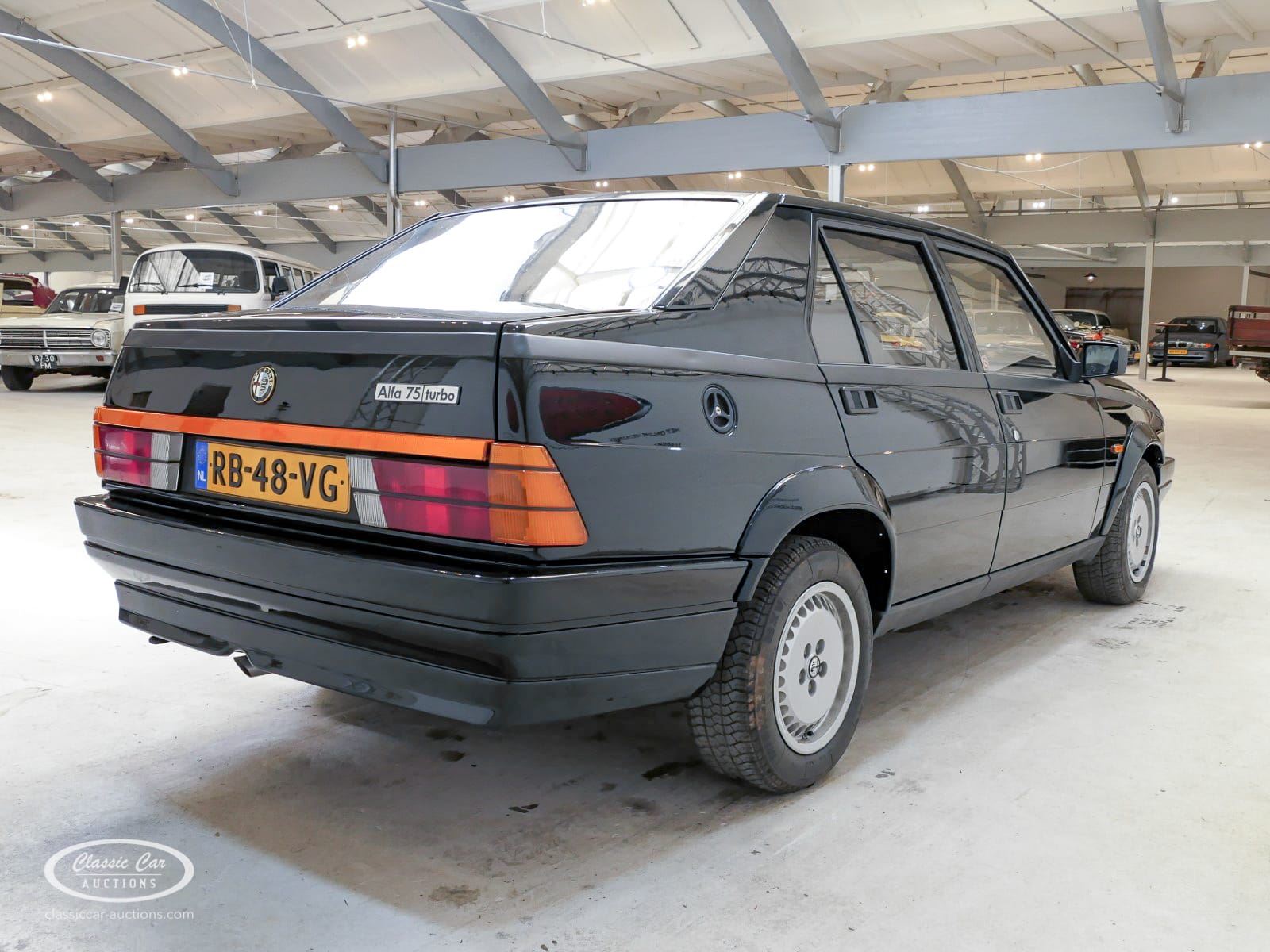

1986 Alfa Romeo 75 1.8 Turbo

Spécifications de voiture

1986 Alfa Romeo 75 1.8 Turbo

Information

Alfa Romeo

Quick Facts

Build Start: 1986

Available in other variants

read more »

Caractéristiques

General

Build Start: 1986
Model Variant: 75

Dimensions

Width: 1660mm
Fuel Tank Capacity: 68litres
Wheelbase: 2510mm
Track/tread (rear): 1395mm
Length: 4420mm
Height: 1349mm
Kerb weight: 1240kg
Track/tread (front): 1380mm

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Type: turbocharged petrol
Top Gear Ratio: 0.78
Cylinders: Straight 4
Bore × Stroke: 80 × 88.5mm
Specific output(DIN): 85.4 bhp/litre1.4 bhp/cu in
Specific torque(DIN): 126.48 Nm/litre, 1.53 ft·lb/cu3
Crankshaft Bearings: 5
Compressor: 1 Garrett T3 turbocharger
Catalytic converter: N
Engine Position: front
Gearbox: 5 speed manual
Engine Manufacturer: Alfa Romeo
Final Drive Ratio: 3.91
Capacity: 1.8 litre (1779cc)
Bore/stroke ratio: 0.9
Compression Ratio: 7.5:1
Engine Coolant: Water
Aspiration: Turbo
Intercooler: Air/air
Engine Layout: longitudinal

Performance

Standing quarter-mile: 28.5 s
Power-to-weight ratio: 124.28 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive
maximum power output(DIN): 154 PS (152 bhp) (113 kW)at 5800 rpm
maximum torque(DIN): 225 Nm (166 ft·lb) (22.9 kgm)at 2600 rpm
Acceleration 0-60mph: 7.5s
Maximum Speed: 214km/h
Weight-to-power ratio: 10.94kg/kW

Our Sponsor

Fuel Consump.

Fuel system: Bosch LE2-Jetronic fuel injection

Chassis & Geomtry

Length:Wheelbase Ratio: 1.76
Front Suspension: I.DW.TB.ARB.
Rear suspension: dD.WL.CS.ARB.

Brakes

Brakes F/R: VeDi/Di-S
Rear brake diameter: 250mm
Front Brake Diameter: 265mm
bmep (brake mean effective pressure): 1589.3kPa

Wheels & Tyres

Wheel Size Front: 6½Jx6½J
Tyres Front: 195/60 VR 14
Wheel Size Rear: 6½Jx6½J
Tyres Rear: 195/60 VR 14

Aerodynamics

Frontal area: 1.91 m²
Drag coefficient: 0.34
CdA: 0.65

Other

RAC rating: 15.9
Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 8 valves in total
Unitary Capacity: 444.75cc
Number of doors: 4
Steering: rack & pinion
