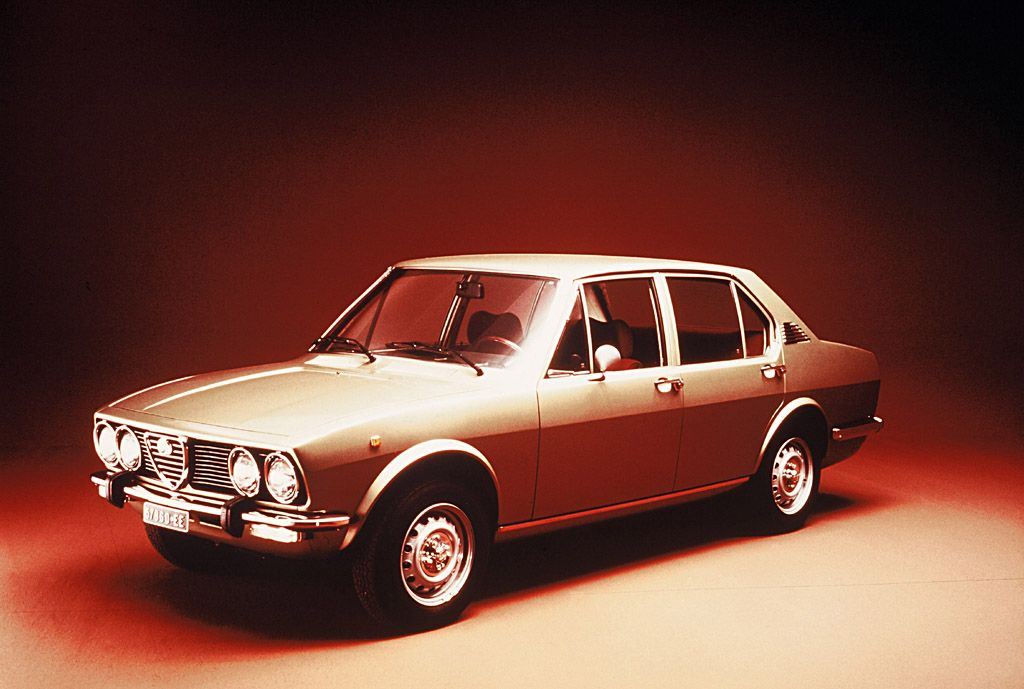

1975 Alfa Romeo Alfetta 1.6

Autospecificaties

1975 Alfa Romeo Alfetta 1.6

Informatie

Alfa Romeo

Quick Facts

Build Start: 1975

Available in other variants

read more »

Specificaties

General

Build Start: 1975
Model Variant: Alfetta

Dimensions

Wheelbase: 2510mm
Track/tread (rear): 1353mm
Width: 1620mm
Ground clearance: 125mm
Kerb weight: 1040kg
Track/tread (front): 1360mm
Length: 4240mm
Height: 1430mm
Fuel Tank Capacity: 49litres

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Position: front
Engine Type: naturally aspirated petrol
Gearbox: 5 speed manual
Cylinders: Straight 4
Final Drive Ratio: 4.30
Bore × Stroke: 78 × 82mm
Specific output(DIN): 68.8 bhp/litre1.13 bhp/cu in
Specific torque(DIN): 90.45 Nm/litre, 1.09 ft·lb/cu3
Compression Ratio: 9:1
Engine Coolant: Water
Aspiration: Normal
Engine Layout: longitudinal
Engine Manufacturer: Alfa Romeo
Top Gear Ratio: 0.83
Capacity: 1.6 litre (1570cc)
Bore/stroke ratio: 0.95
Sump: wet sumped
Crankshaft Bearings: 5
Catalytic converter: N

Performance

Drive Wheels: rear wheel drive
Standing quarter-mile: 18 s
Power-to-weight ratio: 105.29 PS/tonne (1000 kg)
Weight-to-power ratio: 12.91kg/kW
maximum power output(DIN): 110 PS (108 bhp) (81 kW)at 5600 rpm
maximum torque(DIN): 142 Nm (105 ft·lb) (14.5 kgm)at 4300 rpm
Maximum Speed: 175km/h

Our Sponsor

Fuel Consump.

Fuel system: 2 Solex C 40 DDH carburettors

Chassis & Geomtry

Turns Lock-to-Lock: 3.500
Front Suspension: I.W.TB.ARB.
Turning Circle: 10.10 m
Rear suspension: dD.TA.WL.CS.ARB.
Length:Wheelbase Ratio: 1.69

Brakes

Brakes F/R: Di/Di-S
Rear brake diameter: 255mm
bmep (brake mean effective pressure): 1136.6kPa
Front Brake Diameter: 261mm
Braked area: 1955 cm2

Wheels & Tyres

Wheel Size Front: 14x5½J
Tyres Front: 165 SR 14
Wheel Size Rear: 14x5½J
Tyres Rear: 165 SR 14

Other

Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 8 valves in total
Steering: rack & pinion
Number of doors: 4
RAC rating: 15.1
Unitary Capacity: 392.5cc
