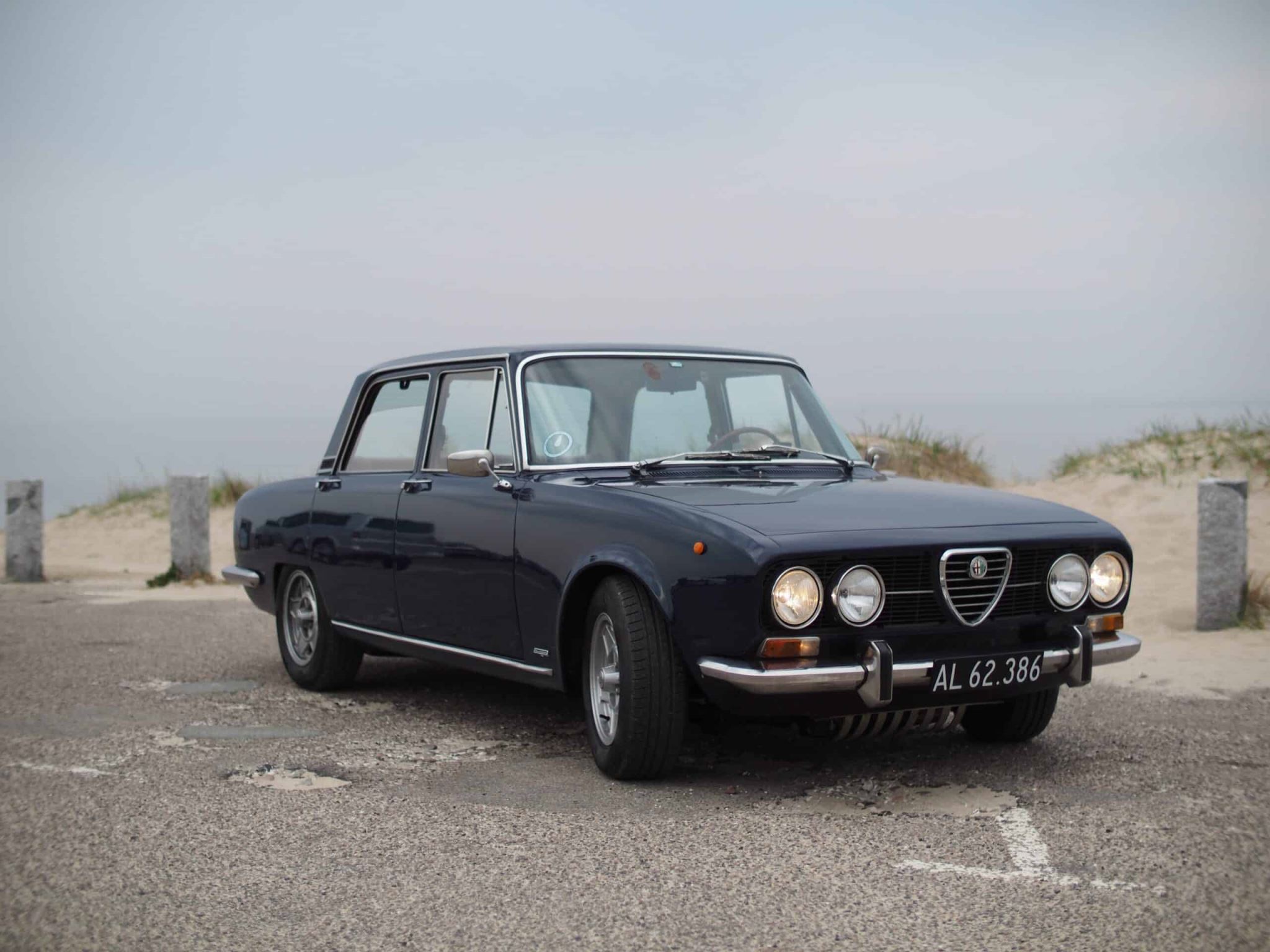

1969 Alfa Romeo 1750 Berlina

Araba özellikleri

1969 Alfa Romeo 1750 Berlina

Bilgi

Alfa Romeo

Quick Facts

Build Start: 1969

Available in other variants

read more »

Spesifikasyonlar

General

Build Start: 1969
Model Variant: 1750

Dimensions

Track/tread (front): 1321mm
Length: 4394mm
Height: 1430mm
Fuel Tank Capacity: 45.5litres
Wheelbase: 2578mm
Track/tread (rear): 1270mm
Width: 1575mm
Ground clearance: 152mm
Kerb weight: 1110kg

Body Details

Body Type: 4/5 seater sedan/saloon

Engine Details

Engine Manufacturer: Alfa Romeo
Capacity: 1.8 litre (1779cc)
Bore/stroke ratio: 0.9
Compression Ratio: 9.5:1
Engine Coolant: Water
Aspiration: Normal
Engine Layout: longitudinal
Gearbox: 5 speed manual
Final Drive Ratio: 4.30
Engine Type: naturally aspirated petrol
Cylinders: Straight 4
Bore × Stroke: 80 × 88.5mm
Specific output(Net): 68.6 bhp/litre1.12 bhp/cu in
Specific torque(Net): 104.55 Nm/litre, 1.26 ft·lb/cu3
Crankshaft Bearings: 5
Engine Position: front
Top Gear Ratio: 0.79

Performance

maximum power output(Net): 124 PS (122 bhp) (91 kW)at 5500 rpm
maximum torque(Net): 186 Nm (137 ft·lb) (19 kgm)at 3000 rpm
Maximum Speed: 180km/h
Weight-to-power ratio: 12.2kg/kW
Acceleration 0-60mph: 10.2s
Power-to-weight ratio: 111.44 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive

Our Sponsor

Fuel Consump.

Fuel system: 2 We carbs

Chassis & Geomtry

Turns Lock-to-Lock: 3.800
Front Suspension: I.CS.
Length:Wheelbase Ratio: 1.7
Turning Circle: 11.40 m
Rear suspension: LA.CS.

Brakes

bmep (brake mean effective pressure): 1313.9kPa
Brakes F/R: Di/Di-S
Braked area: 2561 cm2

Wheels & Tyres

Tyres Front: 165 SR 14
Tyres Rear: 165 SR 14

Other

Designer: Bertone
Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 8 valves in total
Unitary Capacity: 444.75cc
Number of doors: 4
RAC rating: 15.9
