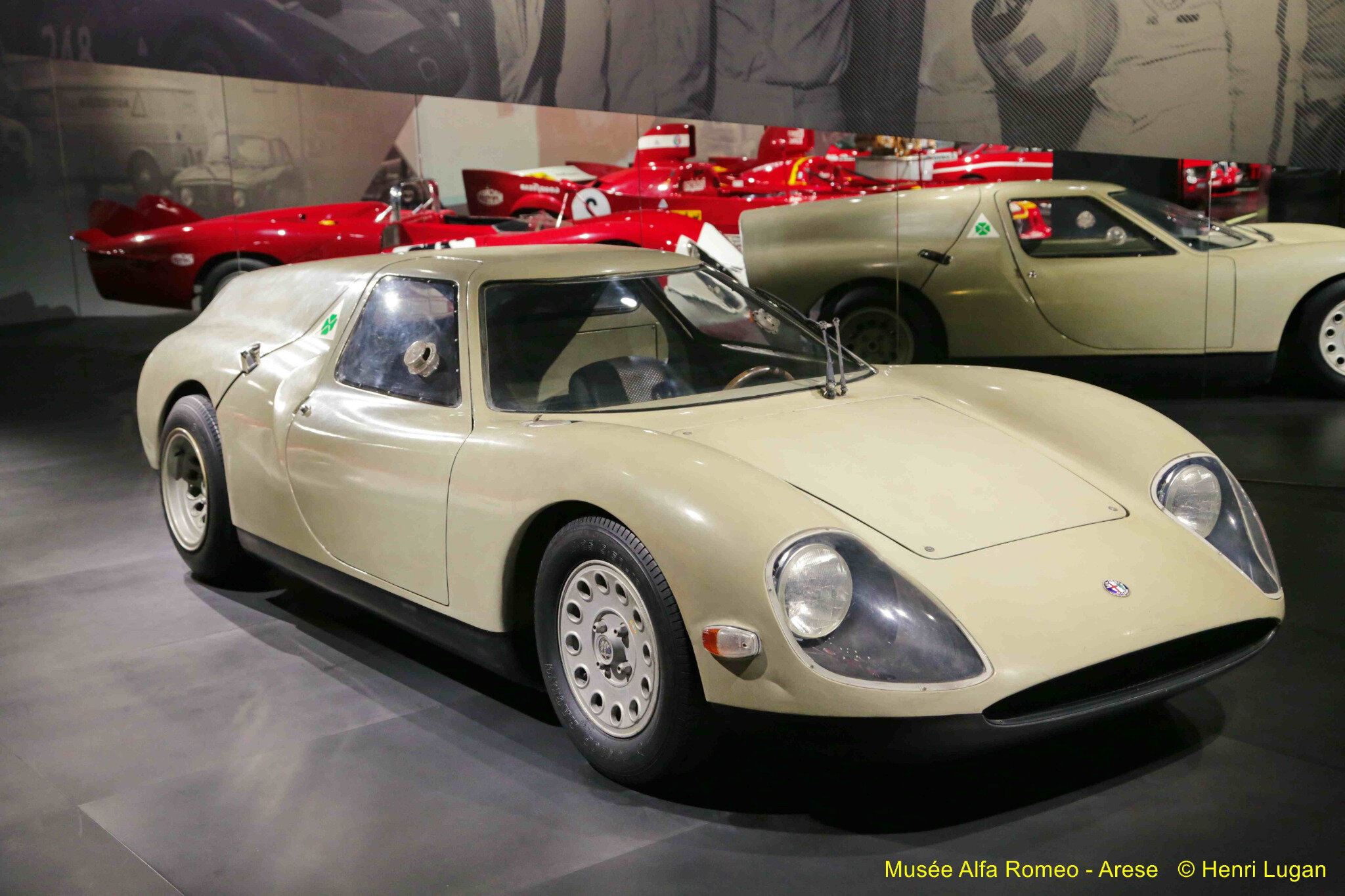

1966 Alfa Romeo Scarabeo

Car Specs

1966 Alfa Romeo Scarabeo

Information

Alfa Romeo

Quick Facts

Production Total: 3

Chassis Code: Concept

Build Start: 1966

Available in other variants

read more »

Specifications

General

Build Start: 1966
Model Variant: Concept
Chassis Code: Concept

Dimensions

Track/tread (front): 1310mm
Length: 3720mm
Height: 1020mm
Kerb weight: 700kg
Wheelbase: 2150mm
Track/tread (rear): 1320mm
Width: 1560mm

Body Details

Body Type: 2 seater fixed-head coupé

Engine Details

Bore/stroke ratio: 0.95
Compression Ratio: 9.7:1
Engine Coolant: Water
Aspiration: Normal
Engine Layout: transverse
Engine Manufacturer: Alfa Romeo
Capacity: 1.6 litre (1570cc)
Bore × Stroke: 78 × 82mm
Specific output(Net): 72.3 bhp/litre1.18 bhp/cu in
Specific torque(Net): 90.45 Nm/litre, 1.09 ft·lb/cu3
Crankshaft Bearings: 5
Catalytic converter: N
Engine Position: mid
Gearbox: 5 speed manual
Engine Type: naturally aspirated petrol
Cylinders: Straight 4

Our Sponsor

Performance

maximum power output(Net): 115 PS (113.5 bhp) (85 kW)at 6000 rpm
maximum torque(Net): 142 Nm (105 ft·lb) (14.5 kgm)at 3000 rpm
Maximum Speed: 200km/h
Weight-to-power ratio: 8.27kg/kW
Power-to-weight ratio: 164.4 PS/tonne (1000 kg)
Drive Wheels: rear wheel drive

Fuel Consump.

Fuel system: 2 Weber carburettors

Chassis & Geomtry

Length:Wheelbase Ratio: 1.73

Brakes

bmep (brake mean effective pressure): 1136.6kPa
Brakes F/R: Di/Di

Other

Production Total: 3
Designer: OSI
Valve Gear: double overhead camshaft (DOHC), 2 valves per cylinder, 8 valves in total
Unitary Capacity: 392.5cc
Number of doors: 2
RAC rating: 15.1
