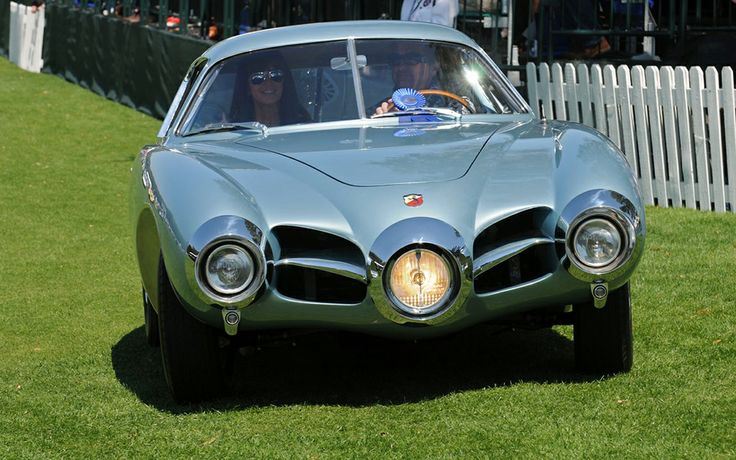

1952 Abarth 1500 Coupé Biposto BAT

Car Specs

1952 Abarth 1500 Coupé Biposto BAT

Information

Abarth

Quick Facts

Build Start: 1952

Available in other variants

read more »

Specifications

General

Build Start: 1952
Model Variant: 1500

Dimensions

Track/tread (front): 1320 mmmm
Length: 4520mm
Height: 1380mm
Kerb weight: 870kg
Wheelbase: 2650 mmmm
Track/tread (rear): 1320 mmmm
Width: 1650mm
Fuel Tank Capacity: 50litres

Body Details

Body Type: 2 seater fixed-head coupé

Engine Details

Engine Layout: longitudinal
Final Drive Ratio: 4.41
Engine Type: naturally aspirated petrol
Capacity: 1.5 litre (1480 cc)
Bore/stroke ratio: 1.27
Compression Ratio: 9:1
Engine Coolant: Water
Aspiration: Normal
Gearbox: 4 speed manual
Cylinders: Straight 4
Bore × Stroke: 84 × 66mm
Specific output: 50.7bhp/litre
Catalytic converter: N
Engine Position: front

Performance

Maximum Power Output: 76 PS (75 bhp) (56 kW)at 5700 rpm
Maximum Speed: 180km/h
Weight-to-power ratio: 15.56 kg/kW, 25.98 lb/bhpkg/kW
Drive Wheels: rear wheel drive
Power-to-weight ratio: 87.41 PS/tonne (1000 kg), 0.09 PS/kg, 64.28 kW/tonne (1000 kg), 0.06 kW/kg, 86.21 bhp/tonne (1000 kg), 0.09 bhp/kg, 0.04 bhp/lb

Our Sponsor

Fuel Consump.

Fuel system: 3 We 32 DR6SP carbs

Chassis & Geomtry

Length:Wheelbase Ratio: 1.71

Brakes

Brakes F/R: Dr/Dr

Wheels & Tyres

Tyres Front: 5.90 x 14
Tyres Rear: 5.90 x 14

Other

Designer: Franco Scaglione
RAC rating: 17.5
Number of doors: 2
Valve Gear: overhead valve (OHV), 2 valves per cylinder, 8 valves in total
Unitary Capacity: 370cc
